FTP Storage

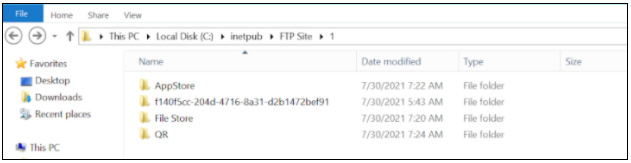

If you are using File Store, App Store, Reports, QR Code then the related folders will be generated automatically on the FTP storage.


note

1. QR code will be saved (in JSON format) in the FTP site folder.
2. This feature is supported from on-premise v6.62 onwards.
3. If you want to upgrade storage (SQL/ S3/ GCS/ FTP) to FTP or an on-premise package (styx v6.62.0 onwards), then you need to manually create a folder by name QR within the Account ID folder in FTP.

To configure FTP storage in SureMDM configurator, follow these steps:

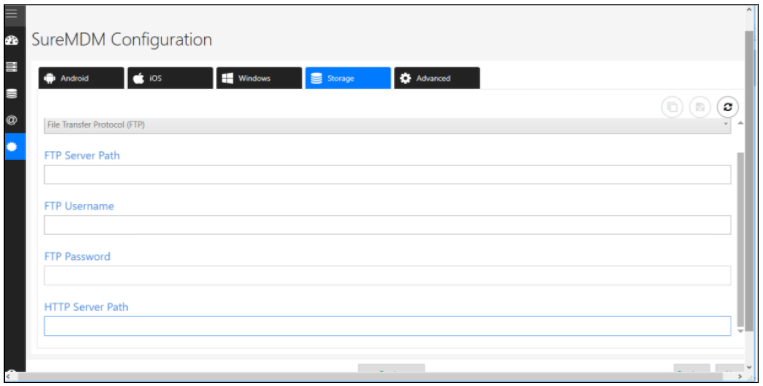

1.  On the SureMDM Configuration window, select File Transfer Protocol (FTP) from Storage Service drop-down list.


2.  Enter the following details and click Deploy.

  •  FTP server path - The path in which FTP Server is hosted
  •  FTP Username - The login name of the machine where FTP server is hosted
  • FTP Password - Password of the server machine.
  • HTTP Server Path - http://DNS_Name/VirtualDirectoryName
note

Configure FTP in the Pluto machine.

To know how to configure FTP File Store, click here.
