Configure G Suite SAML Authentication in SureMDM Server

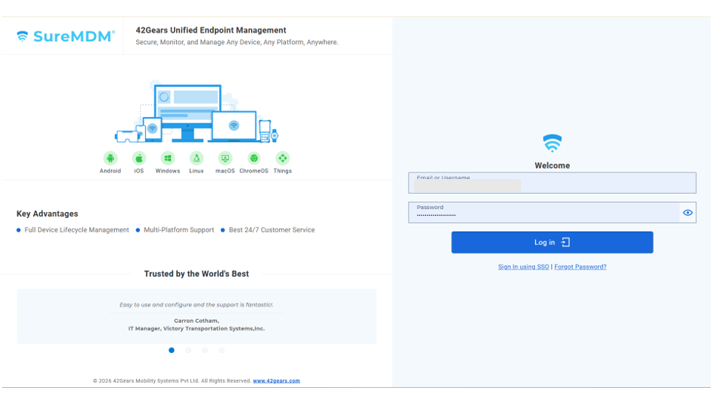

1. Log into the SureMDM Web Console.

2. Go to Settings > Account Settings.

3. Click Shared Device Mode.

In the Shared Device Mode screen, enter the following details:

• a. In the Authentication Type field, choose SAML Authentication.
• b.In the Single Sign-On Type field, select Google G Suite from dropdown.
• c. Add the Service Identifier, i.e., add the Entity Id which is copied in step no. 12 under Configure G Suite for Custom SAML App.
• d. Set the Sign On Service URL and Logout Service URL to be the same as SSO URL which is copied in step no. 12 under Configure G Suite for Custom SAML App.
• e. Logout Service URL- the same as Sign-On Service URL.
• f. Click Upload Certificate and upload the certificate that is downloaded from the Download MetaData Information Tab in Step no. 12 under Configure G Suite for Custom SAML App and click Ok.

4. Click Apply.
