Download and Transfer the NRD File to the Printer
To download and transfer the NRD (Non Readable) file to the printer, follow these steps:
1. Download the JAR file using the link below and save it in an accessible location.
- JAR File (Java Archive File)
2. Download the NRD file based on the region of your SureMDM Account:
Dynamic IP:
- If your SureMDM URL/server path is suremdm.42gears.com, download this NRD file.
- If your SureMDM URL/server path is dns.suremdm.io, download this NRD file.
- If your SureMDM URL/server path is dns.eu.suremdm.io, download this NRD file.
- If your SureMDM URL/server path is dns.in.suremdm.io, download this NRD file.
Static IP:
- If your SureMDM URL/server path is suremdm.42gears.com and if the printer has been configured to use Static IP Address, then download this NRD file
- If your SureMDM URL/server path is dns.suremdm.io and if the printer has been configured to use Static IP Address, then download this NRD file
- If your SureMDM URL/server path is dns.eu.suremdm.io and if the printer has been configured to use Static IP Address, then download this NRD file.
- If your SureMDM URL/server path is dns.in.suremdm.io and if the printer has been configured to use Static IP Address, then download this NRD file
Note: Please do not rename the NRD file.

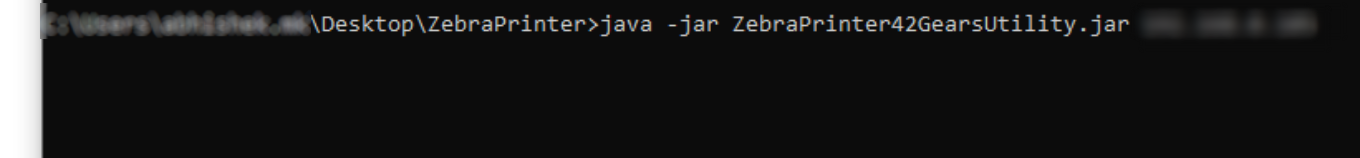

3. Open the command prompt from the Jar file location and execute the following command:
java -jar ZebraPrinter42GearsUtility.jar <IP_of_Printer>

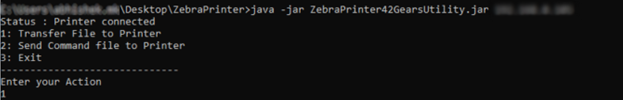

4. Enter 1 to transfer the NRD file to the Zebra printer.
5. Enter the NRD file path and click Enter.
Once done, the user can see the success message.
The next step is to download and transfer the ZPL file to the printer.
