Exchange ActiveSync

MEM Connector Setup

  1. Copy the MEM connector to the server from the downloaded build.

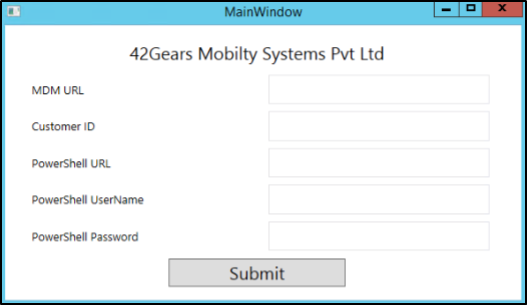

  2. Install and launch MEM connector on the On-Premise server and enter the following details and click Submit to save the details:
  • MDM URL - 127.0.0.1 (Local host)
  • Customer ID - Account ID
  • Powershell URL -  https://\domain\/powershell/

            Example: https://exchange.office.42gears.com/powershell

  • Powershell Username - Exchange Username
  • Powershell Password- Exchange Password
    note

    It might take 5-10 minutes for the device to get whitelisted and configure email account on the device.


3.  Navigate to Pluto web config file (c:\inetpub\wwwroot) and enter the server URL in MemserverUrl as mentioned in the below tag:

<add key="MemServerUrl" value="onpremisetest.42gears.com" />

note

Server URL should be entered without https.

Configure MEM in SureMDM

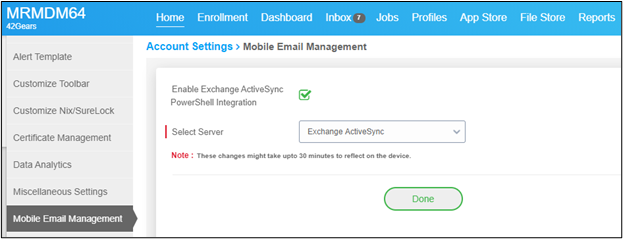

4.  On the SureMDM Web Console, navigate to Account Settings > Mobile Email Management.

5.  Select Enable Exchange ActiveSyncPoweShell Integration.

6.  Select from the drop-down list and click Done.
